0.05 - 0.4mm Self Bonding Magnet Enameled Wire

Name: 005 04mm Self Bonding Magnet Enameled Wire
Brand: Rvyuan
Price: 1 USD

Quality 0.05 - 0.4mm Self Bonding Magnet Enameled Wire wholesale

Brand Name : Rvyuan

Model Number : 0.4-.0.8mm

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

MOQ : Different types with differet MOQ

Packaging Details : Spool with carton

Delivery Time : 2-15 workding days

Supply Ability : 200 Ton/Tons per Month

Diameter : 0.05-0.4mm

Stock : Avaiable

Color : Red/blue/Green

Certificates : IEC/JIS/NEMA

Contact Now

0.05 - 0.4 MM SELF BONDING MAGNET ENAMELED WIRE

Magnetic wire can convert an electrical current into a magnetic field. Copper is a particularly good electricity conductor and has little resistance. This keeps electrical currents strong as they pass through each winding of a copper coil, ultimately producing a strong magnetic field. Copper-based magnetic wire is also much smaller than aluminum-based magnetic wire and can fit into smaller areas. Likewise, copper-based magnetic wire can be bent around corners or jointed to provide maximum efficiency.

FEATURE AND BENEFITS

Thinning of wire caused by coper melting into molten solder is to minimized. More effective for extra-fine wires.
Excellent wettability similar to copper wires.
Tensile stength is 5 to 10 percent higher than copper wires.
Conductivity 98 percent or more.(IACS)
Identical to copper wires in properties of insulating and bonding films.

APPLICATION

Small-size inductors, watch coils,coils of ultrafine wires.

0.05 - 0.4mm Self Bonding Magnet Enameled Wire

SPECIFICATION

Nominal Diameter mm	Tolerance	Min. Increase of Diameter	Max. Overall Diameter	Breakdown Voltage		Elongation	Pin Hole	Electrical Resistance

	mm			≥ V		≥%	≤Default/5m	Ω/km (20℃)
				Mandrel Method	Twisted Method			Min.	Max.
0.05	±0.002	0.011	0.067	800	----	12	3	7981	9528
0.055	±0.002	0.011	0.073	800	----	12	3	6642	7815
0.06	±0.002	0.013	0.08	1000	----	14	3	5614	6526
0.065	±0.002	0.014	0.086	1000	----	14	3	4807	5531
0.07	±0.002	0.015	0.091	1000	----	15	3	4163	4747
0.075	±0.002	0.015	0.096	1100	----	15	3	3640	4119
0.08	±0.002	0.015	0.103	1100	----	16	3	3209	3608
0.085	±0.002	0.017	0.11	1200	----	16	3	2851	3187
0.09	±0.002	0.017	0.114	1200	----	16	3	2550	2835
0.095	±0.002	0.017	0.12	1200	----	17	3	2294	2538
0.1	±0.002	0.017	0.127	1200	----	17	3	2074	2286
0.11	±0.002	0.017	0.139	----	2800	17	3	1720	1882
0.12	±0.002	0.017	0.149	----	2800	17	3	1450	1577
0.13	±0.002	0.019	0.159	----	2800	18	3	1239	1340
0.14	±0.002	0.019	0.171	----	3000	19	3	1070	1153
0.15	±0.002	0.019	0.181	----	3000	20	3	934.1	1002
0.16	±0.002	0.021	0.191	----	3000	21	3	822.3	879.4
0.17	±0.003	0.022	0.201	----	3200	22	3	721.1	787.1
0.18	±0.003	0.022	0.211	----	3200	22	3	644.4	700.7
0.19	±0.003	0.022	0.221	----	3200	23	3	579.4	627.8
0.2	±0.003	0.022	0.231	----	3200	23	3	523.7	565.7
0.21	±0.003	0.027	0.248	----	3300	23	3	475.7	512.3
0.22	±0.003	0.027	0.258	----	3300	23	3	434	466.2
0.224	±0.003	0.027	0.262	----	3300	23	3	418.8	449.5
0.23	±0.003	0.03	0.271	----	3500	24	3	397.5	426
0.24	±0.003	0.03	0.281	----	3500	24	3	365.5	390.8
0.25	±0.003	0.03	0.291	----	3500	24	3	337.1	359.8
0.26	±0.004	0.031	0.303	----	3600	25	3	309.6	335
0.27	±0.004	0.031	0.313	----	3600	25	3	287.4	310.3
0.28	±0.004	0.031	0.323	----	3600	25	3	267.6	288.2
0.29	±0.004	0.033	0.335	----	3700	25	3	249.7	268.4
0.3	±0.004	0.033	0.345	----	3700	25	3	233.5	250.6
0.31	±0.004	0.033	0.355	----	3700	25	3	218.9	234.4
0.315	±0.004	0.033	0.36	----	3700	25	3	212.1	227
0.32	±0.004	0.036	0.368	----	4000	25	3	205.6	219.8
0.33	±0.004	0.036	0.378	----	4000	25	3	193.4	206.6
0.35	±0.004	0.036	0.398	----	4000	26	3	172.2	183.4
0.355	±0.004	0.036	0.403	----	4000	26	3	167.4	178.2
0.37	±0.004	0.038	0.421	----	4100	26	3	154.3	163.9
0.38	±0.004	0.038	0.431	----	4100	26	3	146.4	155.3
0.4	±0.004	0.038	0.451	----	4100	27	3	132.2	140

Product Tags:

magnetic coil wire

ultra fine self bonding magnet wire

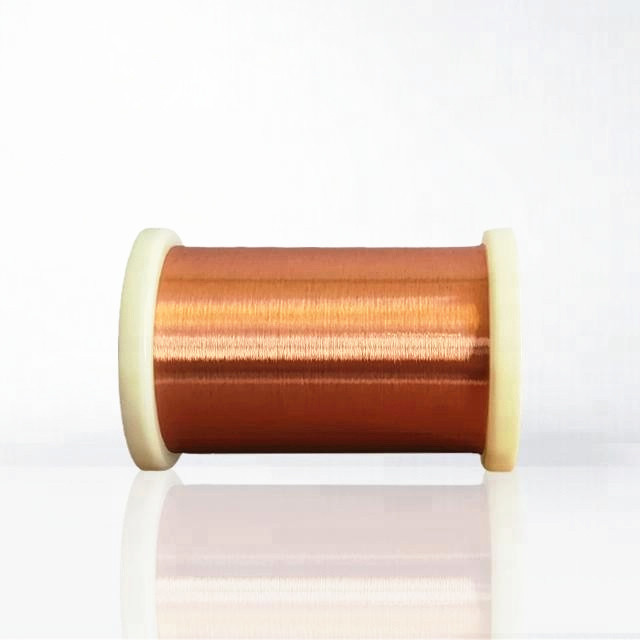

0.05 - 0.4mm Self Bonding Magnet Enameled Wire Images
